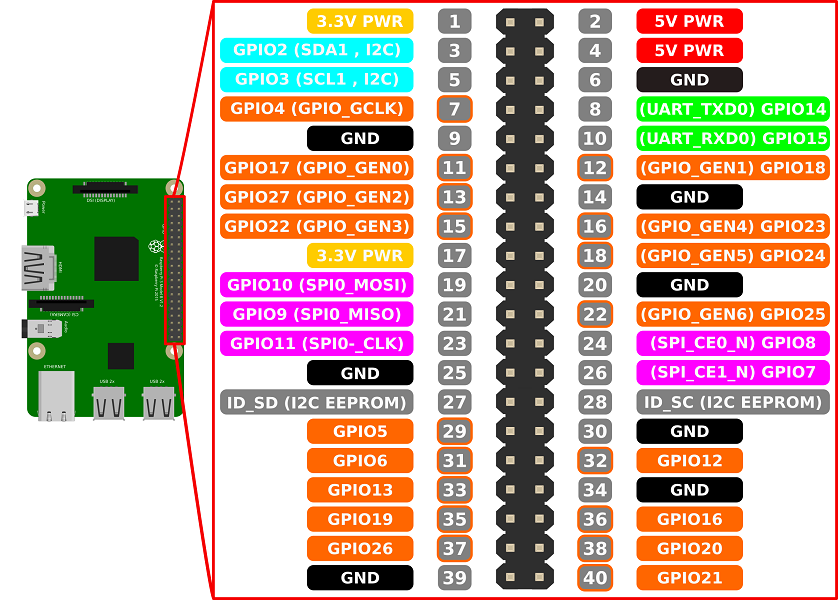

ESQUEMA CONEXIONES RASPBERRY:
CAPTAR AVIONES EN TRANSITO CON LA ANTENA Y ENVIAR A LA RASPBERRY UNA SENAL PARA ENCENDER UN LED DE AVISO.
Descargar y descomprimir:
- DUMP1090: https://github.com/MalcolmRobb/dump1090/blob/master/dump1090-win.1.10.3010.14.zip
- DRIVER ANTENA: https://airspy.com/download/
- Antena: https://www.amazon.es/gp/product/B00P2UOU72/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1
Install-Module -Name Posh-SSH -RequiredVersion 2.0.2
Set-ExecutionPolicy -ExecutionPolicy RemoteSigned
Set-Location C:\Users\PHINX\Desktop\dump1090-win.1.10.3010.14
Start-Process -File .\dump1090.bat -RedirectStandardOutput resultado.txt
Start-Sleep -Seconds 30
Stop-Process -Name cmd
Stop-Process -Name dump1090
Get-Content resultado.txt | Out-File procesado.txt -Append
rm resultado.txt
Start-Sleep -Seconds 5
(Get-Content .\procesado.txt) -split "`n" | %{
$_ | Select-String " S " | Out-File fin.txt -Append
}
$fly=Import-Csv -Encoding Unicode .\fin.txt
rm .\soluc.txt
"Hex ,Mode ,Sqwk ,Flight ,Alt ,Spd ,Hdg ,Lat ,Long ,Sig ,Msgs ,Ti" | out-file soluc.txt
$fly.H1 -split "`n" | %{($_).Substring(0,8)+","+($_).Substring(8,6)+","+($_).Substring(14,6)+","+($_).Substring(20,9)+","+($_).Substring(29,7)+","+($_).Substring(36,5)+","+($_).Substring(41,6)+","+($_).Substring(47,9)+","+($_).Substring(56,9)+","+($_).Substring(65,6)+","+($_).Substring(71,6)+","+($_).Substring(77,1) | Out-File soluc.txt -append}
$flyfinal=Import-Csv -Encoding Unicode .\soluc.txt
$flyfinal.'Flight ' | Group-Object
$flyfinal.'Flight ' | Group-Object | Select name | Select-String "BAW2799"
foreach($resultado in ($flyfinal.'Flight ' | Group-Object | Select name))
{
If($resultado -match "BAW2799")
{
New-SSHSession -ComputerName 192.168.43.135 -Credential (Get-Credential) -Force
Invoke-SSHCommand -Index 0 'python -c "import RPi.GPIO as GPIO;GPIO.setmode(GPIO.BOARD);GPIO.setup(11, GPIO.OUT);GPIO.output(11, True);"'
Start-Sleep -Seconds 10
Invoke-SSHCommand -Index 0 'python -c "import RPi.GPIO as GPIO;GPIO.setmode(GPIO.BOARD);GPIO.setup(11, GPIO.OUT);GPIO.output(11, False);GPIO.cleanup();"'
}
}
